General features

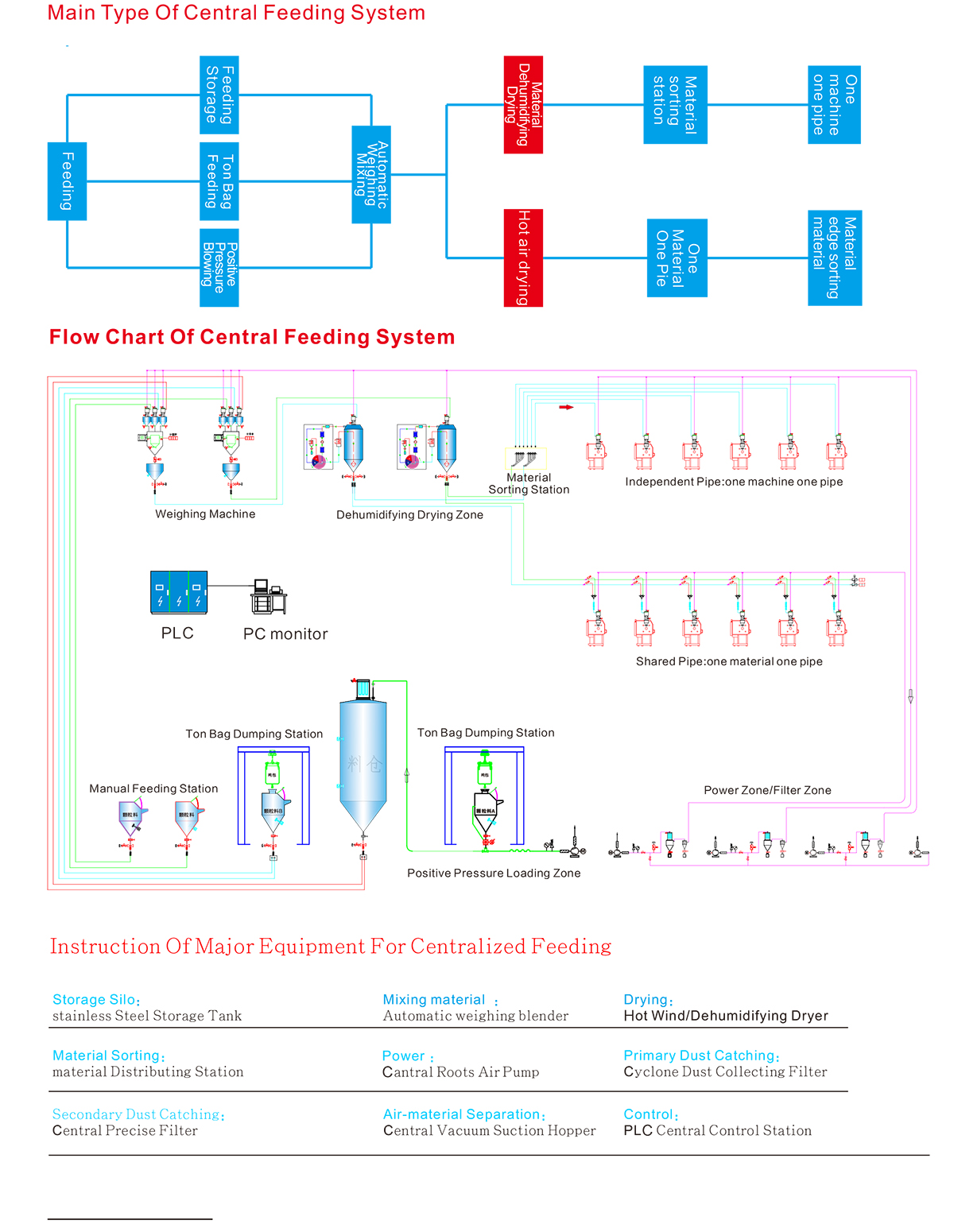

the central feeding conveying system adopts a fully intelligent equipment to centralize power source to convey material to a specified position. Meantime a series of material treatments are applied including
crushing,feeding,dosing,mixing,dehumidifying,conveying,vacuum separating and filtering. Overall, it is a process by information collecting and intelligent monitoring management.

Material central conveying: by adoption of high pressure vacuum air suction device, with air as the conveying medium whose pressure is lower than atmospheric pressure, to form a certain degree of vacuum in the pipe system. Simply, by air movement with a certain flow rate, the system is able to transport the material to

Destination from somewhere by pipeline. The vacuum pressure is usually between -10kpa to 50kpa.

Advantage of liansu central feeding system

safe production,high automation：

adopt plc control, high expand ability, simple humanized operation interface,continuous unmanned operation,high reliability.

Visualized and precise management：

adopt industry ethernet remote monitoring system,can constantly monitor the material allowance and consumption.

High flexibility and powerful function ：

according to different material formula,automatically finish dosing, mixing, drying conveying and etc.

Quality control & efficiency improvement：

automatic unmanned continous material conveying in a closed-loop, to ensure no secondary pollution and waste of material,to improve the production efficiency and stabilize the product quality;

Power centralized system:

optimize the power consumption, increase the energy efficiency, small floor space ,low frequency of maintenance; professional solutions，by combining the designed program of material specialty,air speed, air pressure,engineering structure, and etc, we can effectively solve the problem of dust production,degration,static electricity during the material conveying process.
