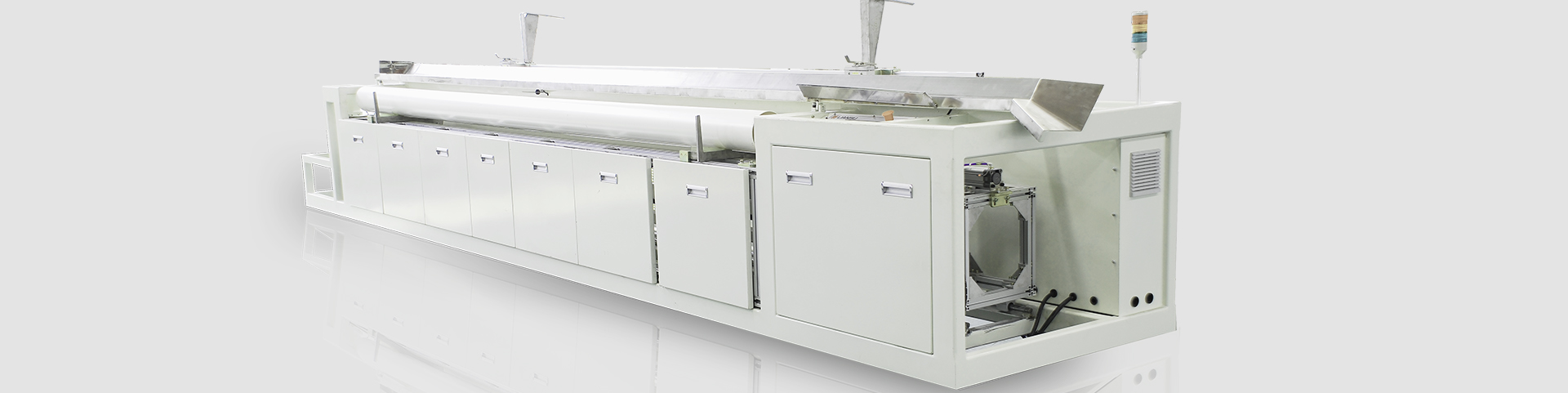

Plastic Pipe On-line Bagging Machine
Certificate Number：
Product Name：Plastic Pipe On-line Bagging Machine
Model：
Body Color：
Plastic Pipe On-line Bagging Machine
Certificate Number：
Product Name：Plastic Pipe On-line Bagging Machine
Model：
Body Color：
Product advantage：
Availability
-
Available with plastic Bag
packaging
-
Available for packaging of PVC、PPR、PE
straight pipes diameter from 75mm-160mm. On-line bagging
-
while running at max line speed of 6m/min
-
Customized packaging solutions with offers according to single, twin or four
pipe extrusion equipment.
Features
-
Compact
size;simple and stable structure;excellent user operating experience
-
Compact structure with working width within 1100mm
-

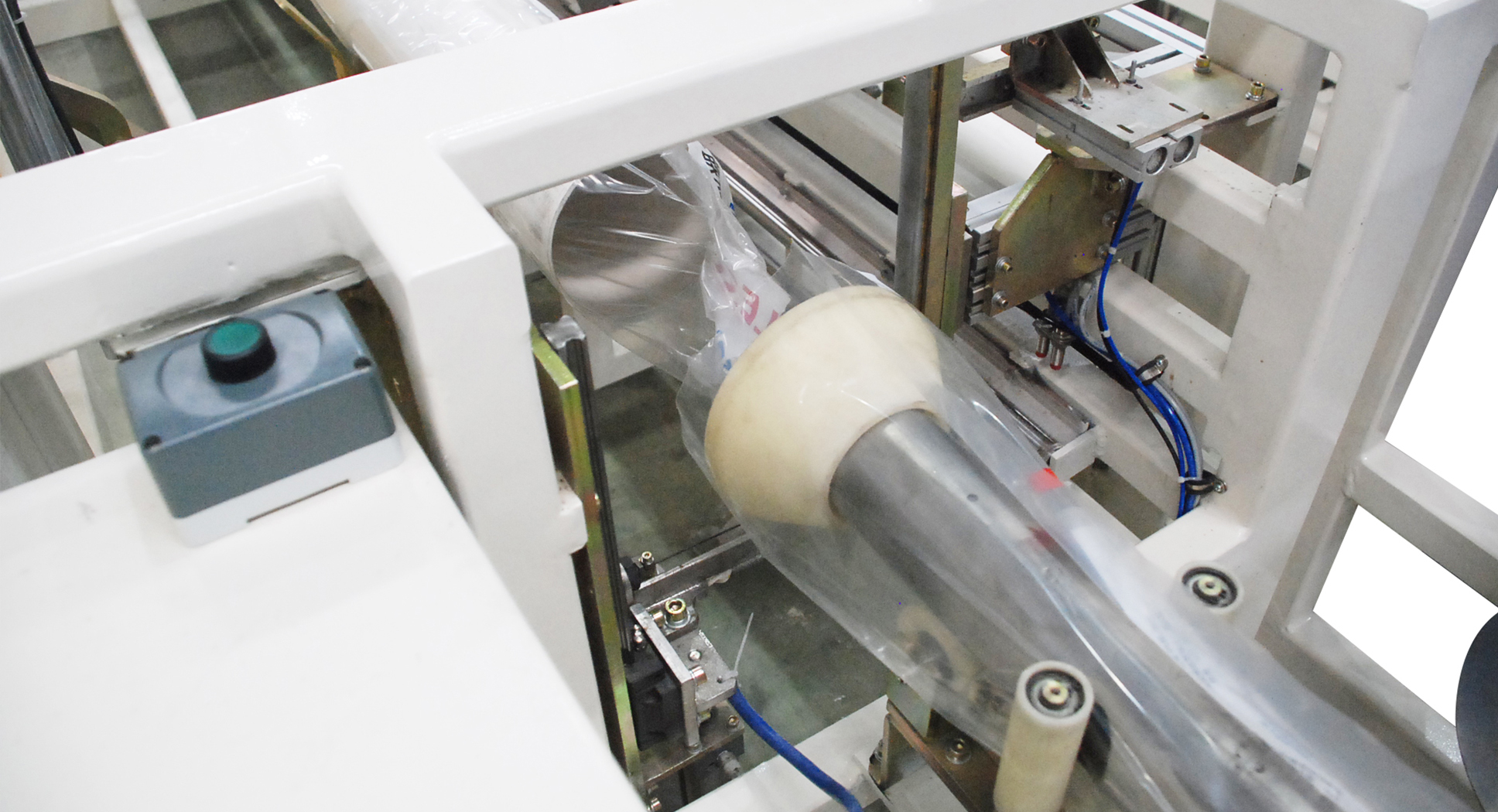

Refined film clamping device ensuring the bag will be tightly stably clamped
with 0.15Mpa air pressure.
-
Applicable to pipe stocking devices which are of different central height.
-
Simple,quick and humanized regulation while changing specification
-
Reliable clamping film bagging,ensure not to loose film within the pressure of
0.15MPa
-
Hot sealing of the bag mouth adopts a method of four bondings to make sure the
quality of sealing
-
Realize stepless servo adjustable in pipe packaging range between 2.5m and 4m
